THE ANACONDA RANGE OF MOBILE SCALPERS HAS BEEN DESIGNED TO SUIT A VARIETY OF APPLICATIONS.

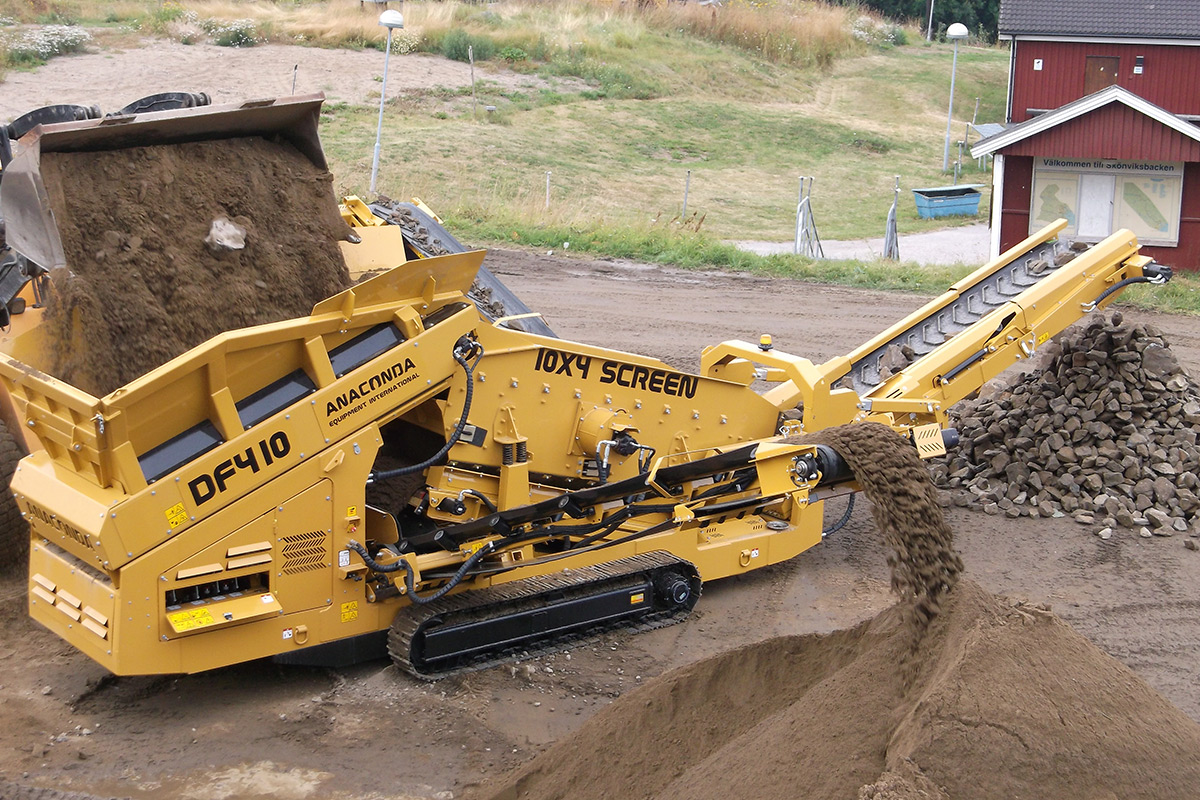

The DF410 range is designed for optimum screening and stockpilling of materials with the longest screen box in the compact screening segment of the market.The 410 range of tracked screens will fold and ship worldwide in standard 40' sea containers thus keeping shipping costs to a minimum!
FEATURES & BENEFITS
- TYPE - STAGE 3A JCB 444 DIESELMAX 63KW (84HP) - ROW
- TYPE - STAGE 3B JCB 444 ECOMAX 68KW (91HP) -EV
- HIGH ENERGY 3M X 1.2M(10'X 4')2 BEARING SCREEN BOX - 2DECKS(LARGEST IN CLASS)
- VARIABLE SPEED CONTROL ON ALL BELTS(EXCLUDING FINES COLLECTION CONVEYOR)
- FLIP DOWN HOPPER TAILGATE TO ALLOW DIRECT FEED FROM CRUSHER BELT
- TAIL CONVEYOR LOWERS HYDRAULICALLY TO ALLOW ACCESS TO BOTTOM SCREEN DECK
- HYDRAULIC FOLDING TAIL CONVEYOR
- FIXED SCREEN ANGLE AT 15DEGREE
- SIDE TENSIONED TOP DECK AND END TENSIONED BOTTOM DECK
- EASY ACCESS TO ENGINE COMPARTMENT
- CONTAINERISES WITHOUT ANY BREAKDOWN
OPTIONS
- DEUTZ 3A TD2011 L04 ENGINE 49.4KW (66HP) ROW
- DEUTZ 3B TD2.9L4 ENGINE 50KW (67HP) EV
- SCREEN DECKS - MESH, BOFOR BAR, FINGER SCREENS OR(LARGEST IN CLASS)
- PUNCH PLATE
- RADIO REMOTE CONTROL
WEIGHT
- 15,600KG/34,320LBS
