TOKU

TOKU was founded in 1955 and they seek to supply reliable quality products. We are proud to be their distributor for hydraulic products in Singapore.

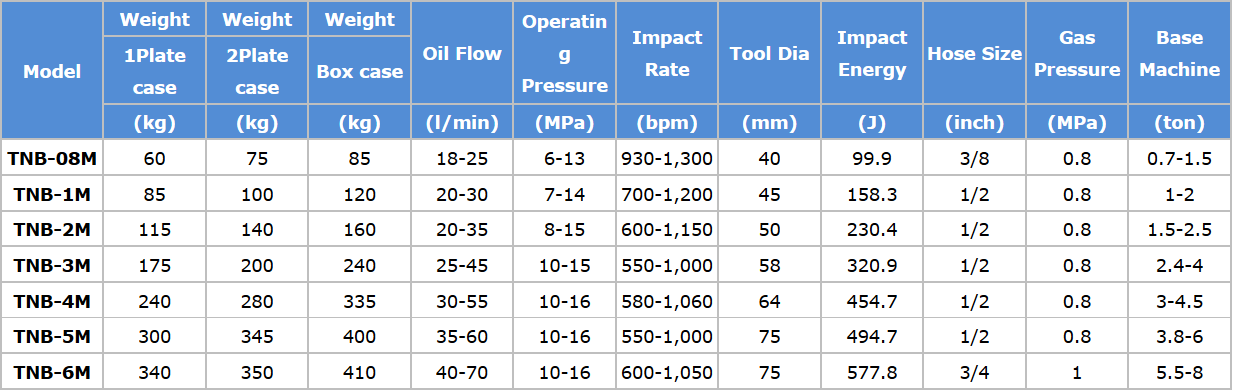

The TNB Mini range consists of the 6 models and some of their features include the following:-

• Simple Structure Design
• Only 2 moving parts; the Piston and the Control valve.
• Reliable and Durable thanks to its simple structure.
• Non-Accumulator structure. Rubber made Accumulator has to be replaced periodically and the running cost is high.
• High productivity: The impact energy TNB breakers consist of 30% from Oil and 70% from Gas.

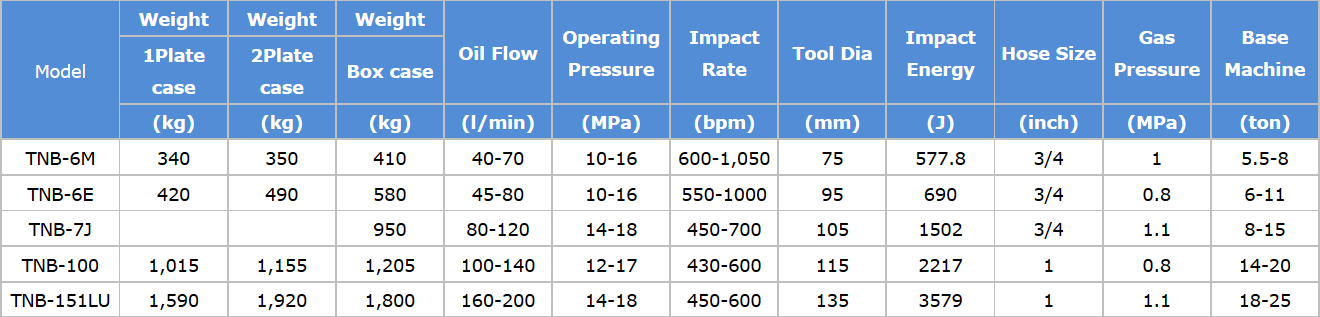

The TNB Medium range consists of the 5 models and some of their features include the following:-

• Simple Structure Design
• Only 2 moving parts; the Piston and the Control valve.
• Reliable and Durable thanks to its simple structure.
• Non-Accumulator structure. Rubber made Accumulator has to be replaced periodically and the running cost is high.
• High productivity: The impact energy TNB breakers consist of 30% from Oil and 70% from Gas.

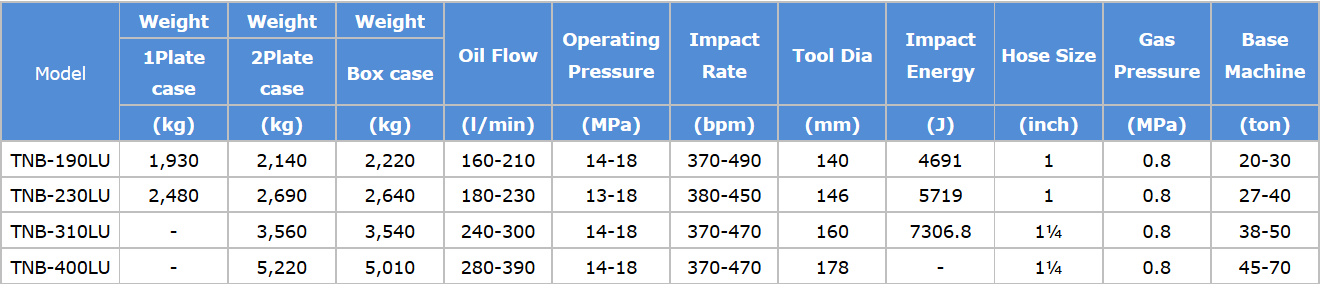

The TNB Large range consists of the 4 models and some of their features include the following:-

• Simple Structure Design
• Only 2 moving parts; the Piston and the Control valve.
• Reliable and Durable thanks to its simple structure.
• Non-Accumulator structure. Rubber made Accumulator has to be replaced periodically and the running cost is high.
• High productivity: The impact energy TNB breakers consist of 30% from Oil and 70% from Gas.

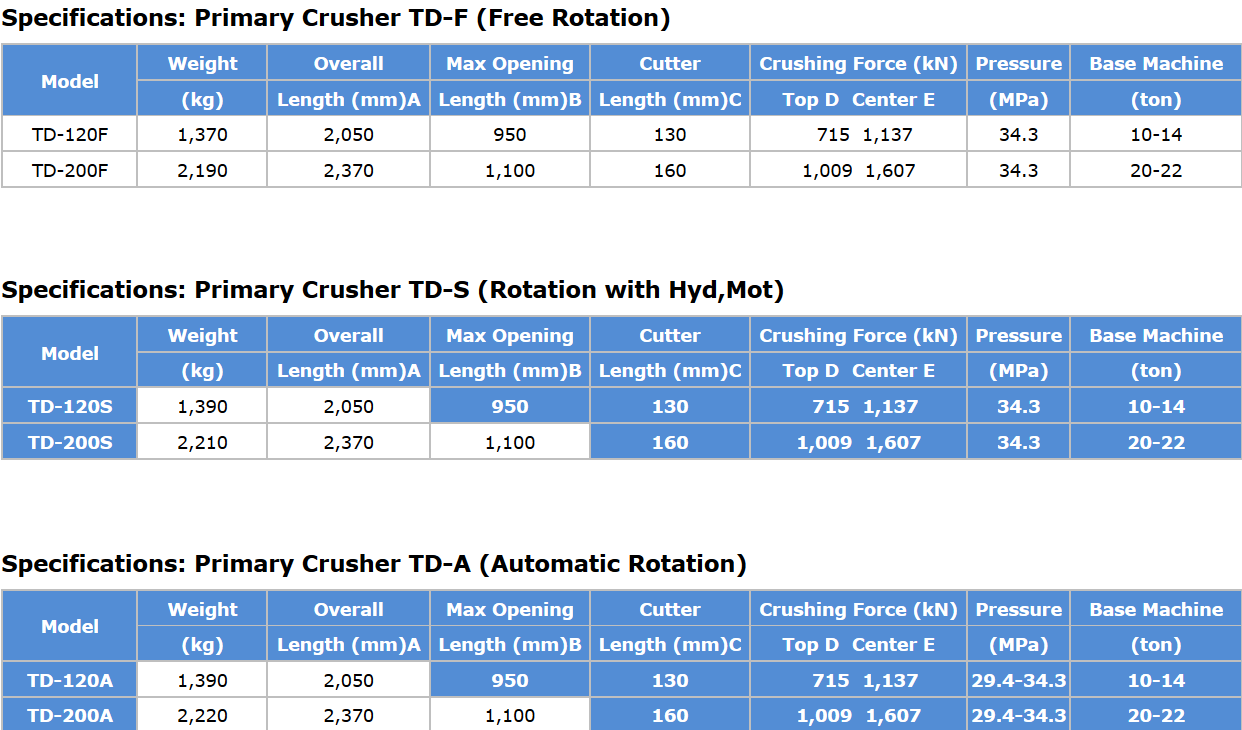

• Model TD-120F, TD-200F; Free rotation type
• Model TD-120S, TD-200S; With Hydraulic rotary
• Model TD-120A, TD-200A; Automatic rotation type

Twin cylinder： The synchronized link assures the jaws to crush objects precisely and works effectively without energy loss. Specially forged jaw tips produces a high level of durability and easy maintenance. The cutter blades can be used in 4 sides.

Applications: Demolition of buildings, foundation and reinforced concrete.

TDL-200A：This is the light weight unit. 10% lighter than conventional TD-type. Automatic 360° rotation:　After the jaws open completely the rotation starts automatically and stops at the targeted position.

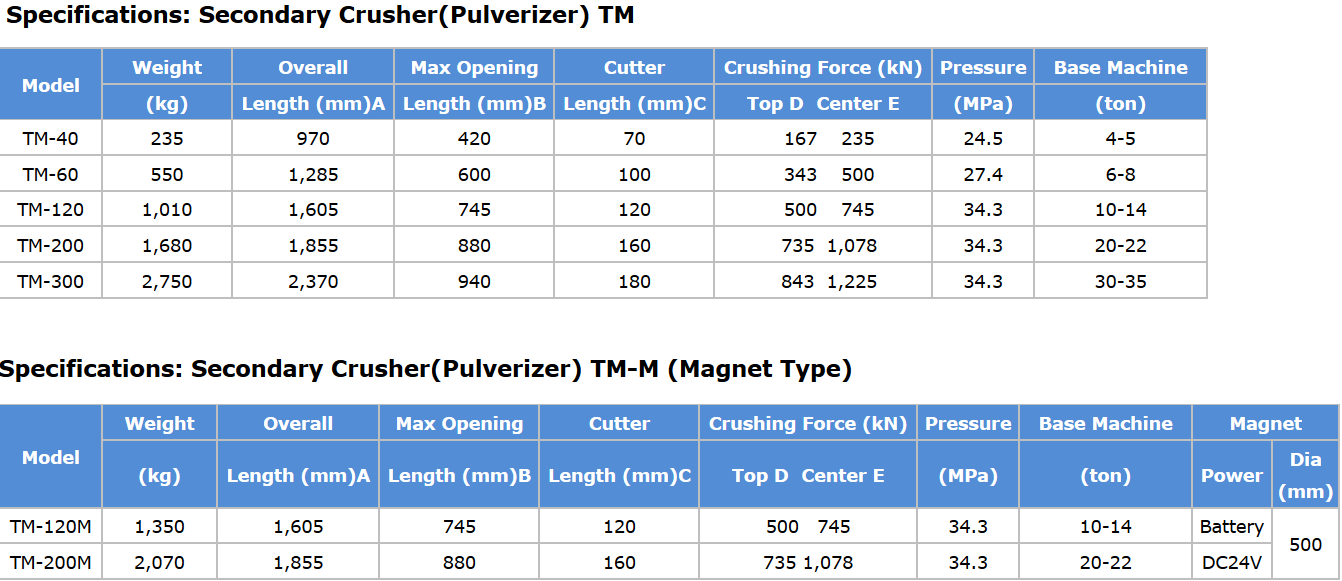

• Model TM-40, TM-60, TM-120, TM-200, TM-300
• Model TM-120M, TM-200M; With Magnet

Features：

• Large size cylinder + Speed valve as standard.
• Low noise, low vibration and highly efficient.
• Specially forged steel (Hardox500) for jaw tips: High level, wear resistant and easy maintenance.
• Integrated Cylinder: The rod section of cylinder is integrated into the crusher body and is protected from damages.
• Magnet type: The magnet section is in the body and for picking up metal reinforcements. The power source can be taken from the battery of base machine.
• Automatic 360° rotation:　After the jaws open completely, the rotation begins automatically and stops at the targeted position by turning the throttle off. The jaw direction will automatically move towards the least loaded position depending on the backhoe location.
